High-Accuracy Shell Mold Castings
Eagle Alloy specializes in shell mold casting, a precision method ideal for high-tolerance, dimensionally accurate steel components. Our in-house shell molding capabilities are designed to support complex geometries, tight specifications, and critical surface finish requirements, making this process a top choice for demanding industries.
What Is Shell Molding?

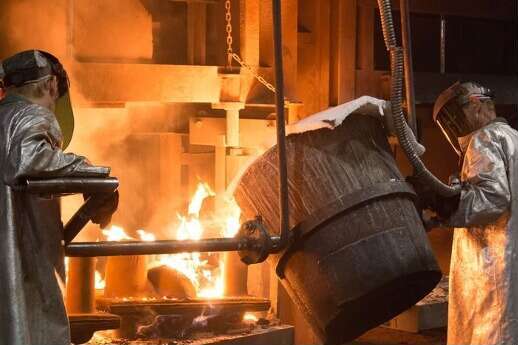

Shell molding (also known as shell mold casting) is a process where thermally bonded sand is applied to a preheated metal pattern. The sand forms a rigid shell that captures fine surface details and holds tight dimensional tolerances. Once cured, the shell halves are removed, glued together, and filled with molten metal. After cooling, the shell is broken away to reveal the finished casting.
Benefits of Shell Molding at Eagle Alloy
At Eagle Alloy, we’ve refined the shell molding process to support high-performance applications with the following advantages:
- Tight dimensional tolerances of ±0.030″ for features under 6″
- Surface finishes of 150–300 RMS, minimizing machining requirements
- Minimum wall thickness of 0.188″ (4.8 mm) for precise designs
- Excellent repeatability and dimensional stability
- Ideal for medium-to-high volume production
We also provide complete Value Engineering and Design for Manufacturability support to optimize your castings for cost, performance, and efficiency.
Is Shell Molding Right for Your Project?
Shell molding is efficient for parts that require dimensional consistency, functional surfaces, or high mechanical strength. It’s an intense match for medium-to-large steel components with moderate to complex geometry, particularly when the part is exposed to heat, pressure, or wear. If your design involves undercuts, internal passages, or intricate external features, shell molding can often eliminate or reduce the need for secondary machining. This makes it a cost-effective option for components where both performance and appearance matter.
Our engineering team will help you determine whether shell molding is the right fit for your specific needs, taking into account your volume, material, and design goals.
Benefits of Shell Molding at Eagle Alloy
At Eagle Alloy, we’ve refined the shell molding process to support high-performance applications with the following advantages:
- Tight dimensional tolerances of ±0.030″ for features under 6″
- Surface finishes of 150–300 RMS, minimizing machining requirements
- Minimum wall thickness of 0.188″ (4.8 mm) for precise designs
- Excellent repeatability and dimensional stability
- Ideal for medium-to-high volume production
We also provide complete Value Engineering and Design for Manufacturability support to optimize your castings for cost, performance, and efficiency.

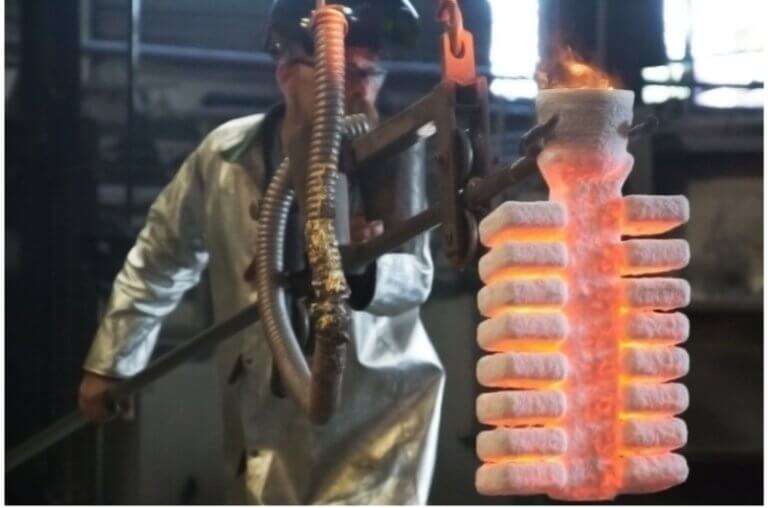

Shell Mold Casting Compared to Other Methods
| CASTING METHOD | TOOLING COSTS | LABOR COSTS | TYPICAL TOLERANCES | SURFACE FINISH | TYPICAL VOLUME |
|---|---|---|---|---|---|
| Shell Mold Casting | Medium | Medium | ±0.030″ | Good | Medium |
| Investment Casting | Medium | High | ±0.005″ | Very Good | Low to High |
| Airset Casting | Low | High | ±0.063″ | Fair | Low |
| Greensand Casting | Low | Medium | ±0.030″ | Fair | Low to Medium |
Shell Molding Equipment Highlights
Our shell molding casting line includes:
- Over 20 shell molding machines ranging from 15×20″ to 30×44″
- In-house tooling, shell coating, and automated sand processing

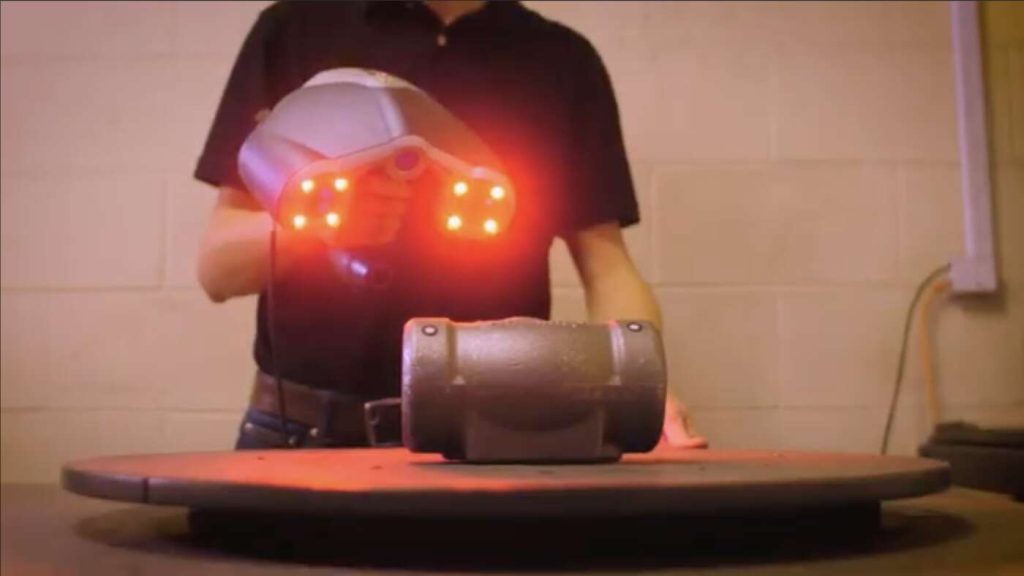

- MAGMASOFT casting simulation and Keyence WM-6000 3D scanning for quality and precision
Explore our comprehensive steel casting facilities for detailed information on our equipment and production capabilities.
Shell Mold Casting Applications
Shell molding is an excellent fit for customers in:
- Pump, valve, and fluid systems
- Agriculture and heavy equipment
- Energy and industrial markets
- Modular construction
- Shipping and maritime industries
- Defense and firearms
- Any industry requiring complex, high-strength parts
Download Our Shell Molding Process Guide
Want to see the complete guide to Eagle Alloy’s shell molding capabilities, results, and process recommendations? Our free guide provides details on tolerance ranges, inspection processes, and design guidelines for shell molding projects.
Get Expert Support for Your Next Shell Mold Project
Whether you’re designing new parts or transferring existing work, Eagle Alloy’s shell molding team can help you deliver consistent, high-quality castings.
Request a quote or contact us to speak with our engineering team today.
